COMPLEX
for automation.
STATIC DENSITY METER
The most compact fully automated complex for static stamp testing according to GOST R 59866-2022.
8 (906) 816 6697
Provides automated
testing of static
loads on the stamp according to the methods
testing of static
loads on the stamp according to the methods
PNST 311-2018, GOST R 59866-2022
DIN 18134, ODM 218.5.007-2016
GOST 20276.1-2020
GOST R 59866-2022
DIN 18134, ODM 218.5.007-2016
GOST 20276.1-2020
GOST R 59866-2022
Simplicity, reliability
and functionality
and functionality
We for sure know that field conditions require simplicity, convenience and security.
Our complex meets
the requirements perfectly:
Fast installation
and automatization of the testing process
and automatization of the testing process
Ergonomically
arranged equipment in separate boxes
в отдельных боксах;
arranged equipment in separate boxes
в отдельных боксах;
Sealed
ssystem design
ssystem design
GPS and GSM
modules allowing
to monitor the accuracy of the testing remotely
modules allowing
to monitor the accuracy of the testing remotely
Obtain reliable survey results
and simplify the conduct of research
and simplify the conduct of research
Fully
automated research:
automated research:
- Set the testing scheme with the possibility to load accurately up to 0,01 кN
- Maintain the circuit with constant pressure at each stage
- Record test results
- Print test results after conducting the research
- Erases the influence of “human factor” during the testing
The station
design allows you to:
design allows you to:
- Provide fully automated process of research
- Change your research methods and implement your own
- Conduct the determination of deformation of soil property and road pavement
Specification:
load up to 50 kN
with the possibility of expansion
to the required values
with the possibility of expansion
to the required values
precipitation measurement
with an error
of no more than 0.01 mm
with an error
of no more than 0.01 mm
stroke length of the power
drive
100 mm
drive
100 mm
the autonomy of the complex
in working mode
three days
in working mode
three days
sensors
подключение 4-х
connection of 4
additional sensors
подключение 4-х
connection of 4
additional sensors
certified
with the help
of measuring equipment
with the help
of measuring equipment

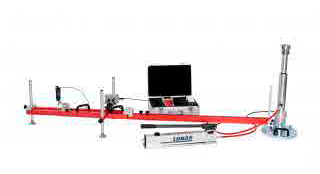

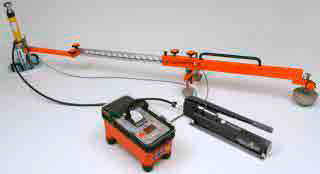

Comparison charts
| Feature | An option on the ANIX market | An option on the PDG market | Our station |
| Pressure supply method |  |
 |
 |
| Pressure supply | Up to 100 kN | Up to 50 kN | Up to 50 kN |
| Recording of measurements | Digital sensors | Basic equipment with analog devices | Digital sensors |
| Linear stroke sensor | Up to 7,5 mm of direct definition and up to 15 mm through the lever |
Up to 25 mm of direct definition and up to 50 mm through the lever |
100 mmof direct definition (no need for complicated lever construction) |
| Additional features | Printer | Available with an additional payment: Printer Digital sensors GPS |
Printer Digital sensors Wi-Fi GPS and GSM modules |
Complex structure
- a controller to manage the test scheme and data recording;
- force measurement sensor;
- linear displacement sensor;
- a reference kit for the linear displacement sensor;
- compact hydraulic station;
- a kit to transmit forces to the main frame;
- specification package for the complex;
Optional:
- GPS module to fixate the testing site
- GSM module to record all the data in research database also for sending the data remotely to the database
- Wi-Fi module to manage the station and see the process of testing
- Equipment kit on the site to manage everything via smartphone
- Manual pressure supply kit up to 10t
- Advanced tension sensor for pressure supply sensor up to 10t
- Temperature sensor
CERTIFICATIONS

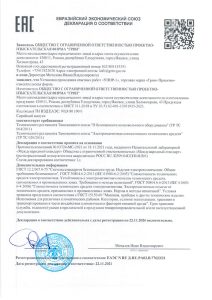

Device passport.Certificate. .

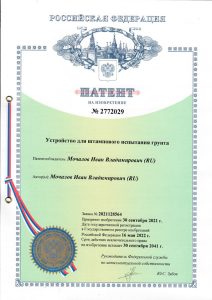

Patent.
